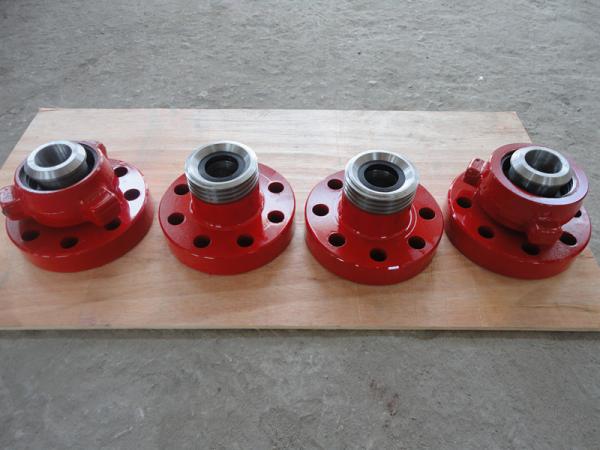

Thhe Weco union adapter flange is composed with the flange adapter and the weco hammer union. Wellhead flange adapters are designed to be installed on to API wellheads and provide a transition between the xmas tree and the well intervention pressure control equipment. It is important to note that, the wellhead flange adapter should always be compatible with the through bore of the wellhead it is being installed on to.
Features of the Weco union adapter flange
* The Weco union adapter flange is made of AISI 4130 Forging
* It is easy to install the adatper flange with union connection to the other wellhead equipmets.
* Reliable quality, conformed with API standard
* The adatper flange can be worked in H2S condition according to NACE MR0175
Detailed Specification of the adatper flange
| Item | Description |
| 1 | WECO UNION ADAPTOR FLANGE
* 3-1/8" 5K WP FLANGE BTM X 2" WECO FIG. 1502 FEMALE SUB * C/W 2" WECO BLANKING PLUG WITH 1/2" NPT PORT * MATERIAL: AISI 4130 |
| 2 | WECO UNION ADAPTOR FLANGE
* 2-1/16" 5K WP FLANGE BTM X 2" WECO FIG. 1502 FEMALE SUB
* C/W 2" WECO BLANKING PLUG WITH 1/2" NPT PORT |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.
The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, wellhead valve parts, API Clamp, API Clamp Hub etc.
Welcome to contact us for more information!
